8.2.7 Oscillator Mixer

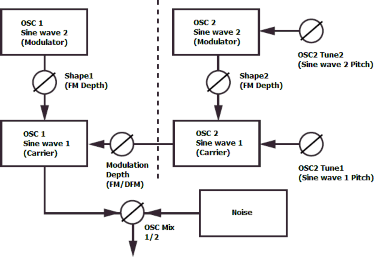

The Oscillator Mixer is used to set the mix level for the Oscillators 1 & 2.

Mixer Noise:

With the Noise switch you can replace the audible output of Oscillator 2 by white Noise.


Notice that even if Noise is enabled, the output signal of Oscillator 2 is still enabled and internally used for Modulation (see Chapter: Oscillator Modulation).


Combine the Mixer Noise with a Modulation Envelope attached to the Oscillator Mixer to add some breath to the beginning of a Sound.
