8.2.2 Oscillator 1 & 2 Regular Waveforms‌

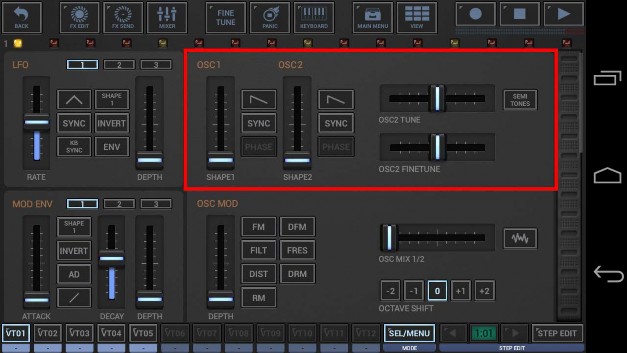

Each Oscillator offers 6 different shapeable (regular) waveforms.


The characteristics of each waveform will be explained in the following chapters.


Note:

Instead of a regular waveform, each Oscillator can also hold a Sample-based instrument using the additional “Waveform” PCM. Sample-based (PCM) instruments are usually built of multiple samples, which are arranged across the keyboard and the velocity range (see Chapter: Oscillator 1 & 2 PCM (Multi-Sample based Synthesis)).

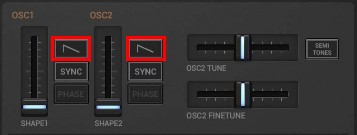

To choose one of the waveforms, simply tap the waveform selector buttons.






8.2.2.1 Sawtooth8.2.2.2 Pulse8.2.2.3 Triangle8.2.2.4 Sine8.2.2.5 Noise (Oscillator 1)8.2.2.6 Dual Sine (Oscillator 1)
