13.4.4 Generate Parameter Automation‌

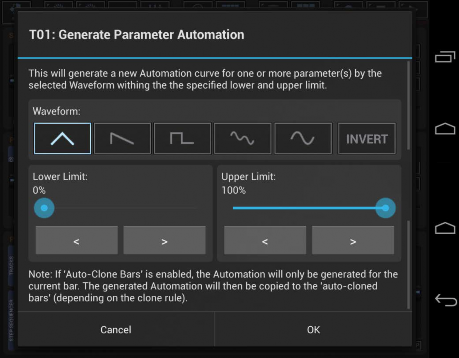

Generate Parameter Automation is used to create Automation curves based on the following waveforms (for one or more Parameters):

• Triangle

• Sawtooth

• Pulse (Square wave, fixed at 50% pulse with)

• Triple Peak (a combination a smooth Sawtooth approximated Sine and a 3 times faster running Sine wave)

• Sine

All waveforms are invertible.

Use the Lower Limit and Upper Limit sliders to define the range of the generated Automation curve.

Note: Generate Parameter Automation is only supported for Faders, not for Buttons

Generate Parameter Automation is linked with Auto-Clone Bars:

If Auto-Clone Bars is enabled, the Automation will only be generated for the current bar. The generated Automation will then be copied to the ‘auto-cloned bars’ (depending on the clone rule).

(see also Chapter: Pattern Sequencer > The Auto-Clone Bars feature on the Position Controls)
