22.5 Setup MIDI Channels/Ports

The MIDI Channel/Ports settings are located in the different MIDI sections of the Setup dialog. G-Stomper Studio lets you map MIDI Channels/Ports to various modules across the application.


• “Global”, all modules of functions which are not bound to a particular track T[..] or VT[..]: Sequencer, Timing & Measure, FX, Master, Sum FX, R-Arp, Stutter, Pattern Set, etc., and the option to play all Sampler Tracks at once in one single channel (each on a specific Key/Note).


• The selected Sampler Track:

In this case, MIDI events will always be fired to and received from the currently selected Track T[..].


• Each Sampler Track separately (e.g. T01, T02):

In this case, MIDI events will be fired to and received from the mapped Tracks (regardless which Track is selected).


• The selected VA-Beast Track:

In this case, MIDI events will always be fired to and received from the currently selected Track VT[..].


• Each VA-Beast Track separately (e.g. VT01, VT02):

In this case, MIDI events will be fired to and received from the mapped Tracks (regardless which Track is selected).

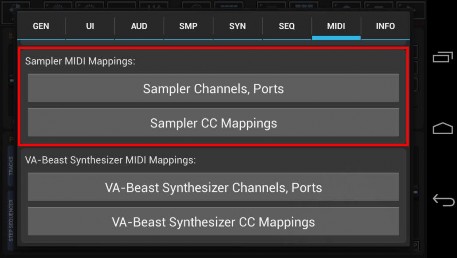

To show the existing Global Channel/Ports, press the “Global Channel, Ports” button in the Global Midi Mappings section.




In the detail view you can either manually edit the Channel/Ports or learn it by MIDI.



To show the existing Channel/Ports of a particular Track, press the “… Channels, Ports” button in the appropriate section.



Then select the Track you want to show.




In the detail view you can either manually edit the Channel/Ports or learn it by MIDI.






22.5.1 Manual Edit MIDI Channel/Ports22.5.2 Learn MIDI Channel/Ports
