10.3.2 Master Sum/Insert FX and Mixer Channel Insert FX Types



The Sum/Insert FX Units in the Master section and the Mixer per Channel Insert FX Units come without Side-Chain support; therefore the Vocoders are excluded (Vocoders work with Side-Chaining only).

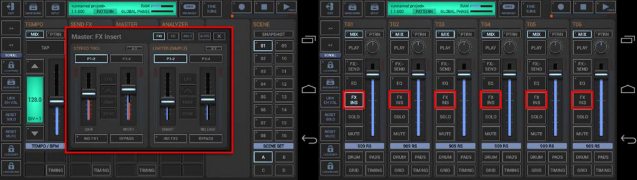

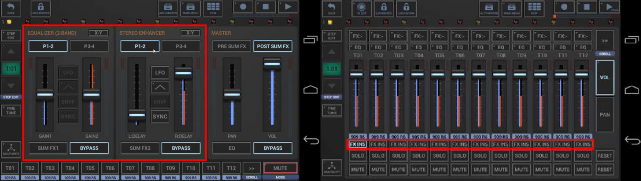

The 2 Sum Effect Units in the Master Section provide the following subset of Effect types:

Dynamic Processors

Compressor/Limiter *sc Compressor/Limiter II *sc Compressor (simple) *sc Limiter (simple) *sc Stereo Tool

Gate *sc

Transient Shaper *sc Exciter **

Bottom Booster ** Stereo Enhancer **

Distortion Effects

Distortion Overdrive Overdrive II Saturation Bit Crusher Waveshaper

Bender Distortion


Stereo Delay * Single X-Delay * Dual X-Delay * LFO X-Delay *, **

Reverb *(pre-delay)

Reverb (X-Large) *(pre-delay) Short Delay **

Modulation Effects

Tremolo ** Auto Panner **

Chorus/Flanger ** Phaser **

Static Phaser (no LFO)


LP Filter 12dB **, *ef, *sc HP Filter 12dB **, *ef, *sc LP Filter 24dB **, *ef, *sc HP Filter 24dB **, *ef, *sc BP Filter 12dB **, *ef, *sc

Notch Filter 12dB **, *ef, *sc Moog LP Filter 24dB **, *ef, *sc Moog HP Filter 24dB **, *ef, *sc EQ (1-Band) **

EQ (2-Band)

Other Effects

Single Pitch Shifter Dual Pitch Shifter Granulator Pan/Vol

Vocoder A (8-Band) *sc Vocoder B (8-Band) *sc Vocoder C (8-Band) *sc Vocoder D (8-Band) *sc

* Tempo sync

** Tempo synchable LFO

*ef Envelope Follower

*sc Side Chain Support (regular FX Chain, FX1-FX3 only)

(for details about the particular Effects, see Chapter: Effect Reference)
