11.1.2 Channel Strip

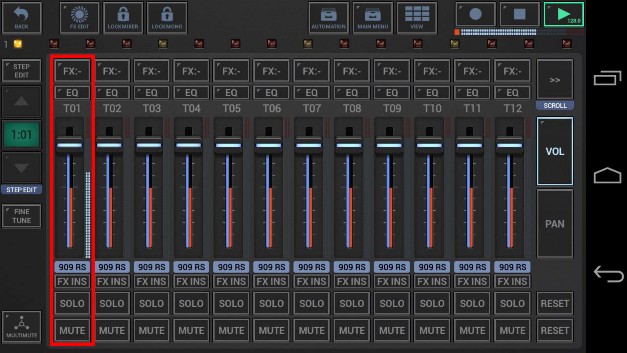

Each Channel Strip provides the following controls:


• FX Send switch (see Chapter: Effects)


• EQ switch to show up the parametric 3-Band Channel EQ


• Volume / Panorama Fader (VOL: blue, PAN: red)

(use the VOL/PAN buttons at the right side to switch between Volume and Panorama)


• VU Meter to monitor the Channel Output signal (where it leaves the Channel Strip)


• FX INS switch to show up the Channel Insert Effects


• Solo switch

(the Reset button at the right side is used to un-solo all channels)


• Mute switch

(the reset button at the right side is used to un-mute all channels)
