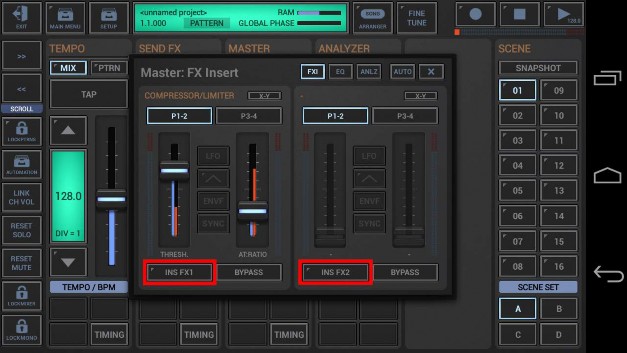

The Master section provides two Insert Effect Units, where you can use two independent Effects on the Sum.

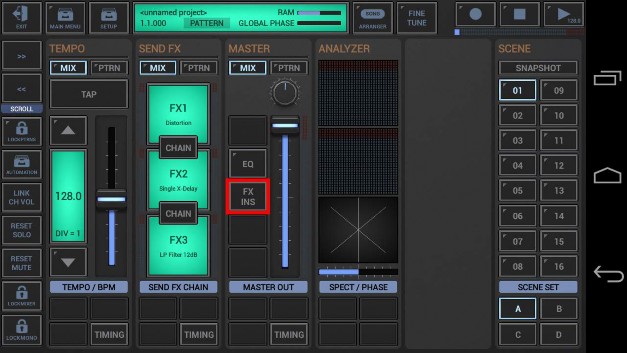

Press the “FX INS” button to show up the Master Insert Effects.
By default all Insert FX are turned off, which means no FX are loaded. Use the dedicated buttons to load Effects to the the Units.
The Channel Insert Effects provide only a subset of the complete list of FX Types. There are no Vocoders (Vocoders cannot be used without side-chaining).

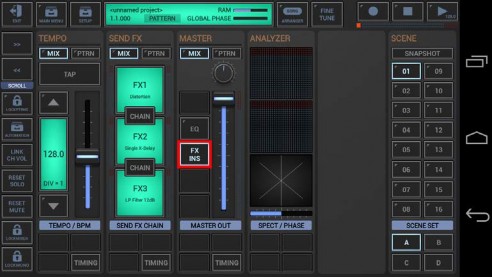

(for more details, see Chapter Effects > Master Sum/Insert FX and Mixer Channel Insert FX Types) Notice that the “FX INS” button gets highlighted if one or more Master Insert Effects are in use.
(for details about the particular FX Types, see Chapter: Effects > Effect Reference)
