11.1.6 Channel Spectrum Analyzer‌

Each Mixer Channel provides a Spectrum Analzyer to give you a visual representation of the frequency content in 1) the particular channel signal and 2) the sum (master out) signal.

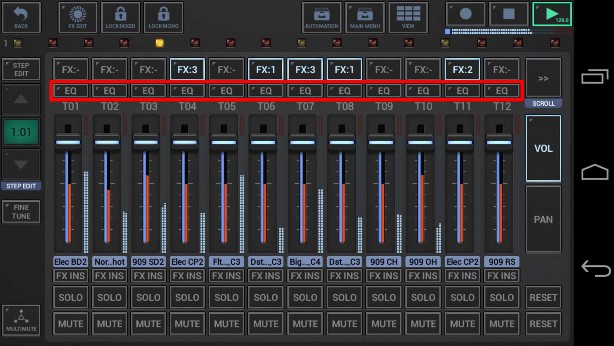

Long press the “EQ” button to show up the Analyzer for a specific Channel.

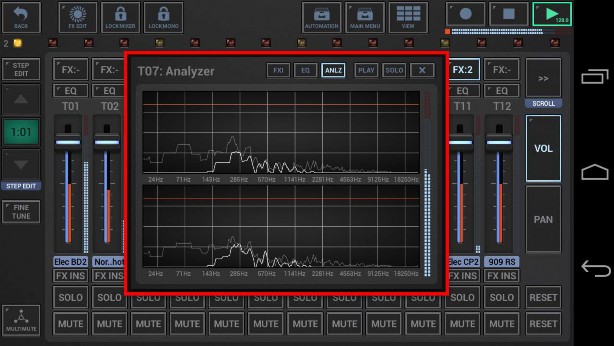

Note: The white spectrum represents the channel, the gray spectrum represents the master out.

Read more about the function of a Spectrum Analyzer: https://en.wikipedia.org/wiki/Spectrum_analyzer
